V-One

Printer

• V-One
• Ideal for
• PCB prototyping
• PCB assembly
• Hands-on learning
• Makerspaces

Dispensing technology

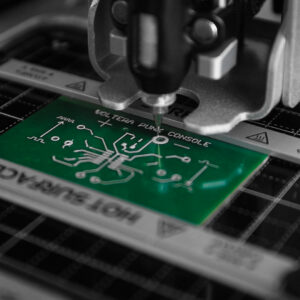

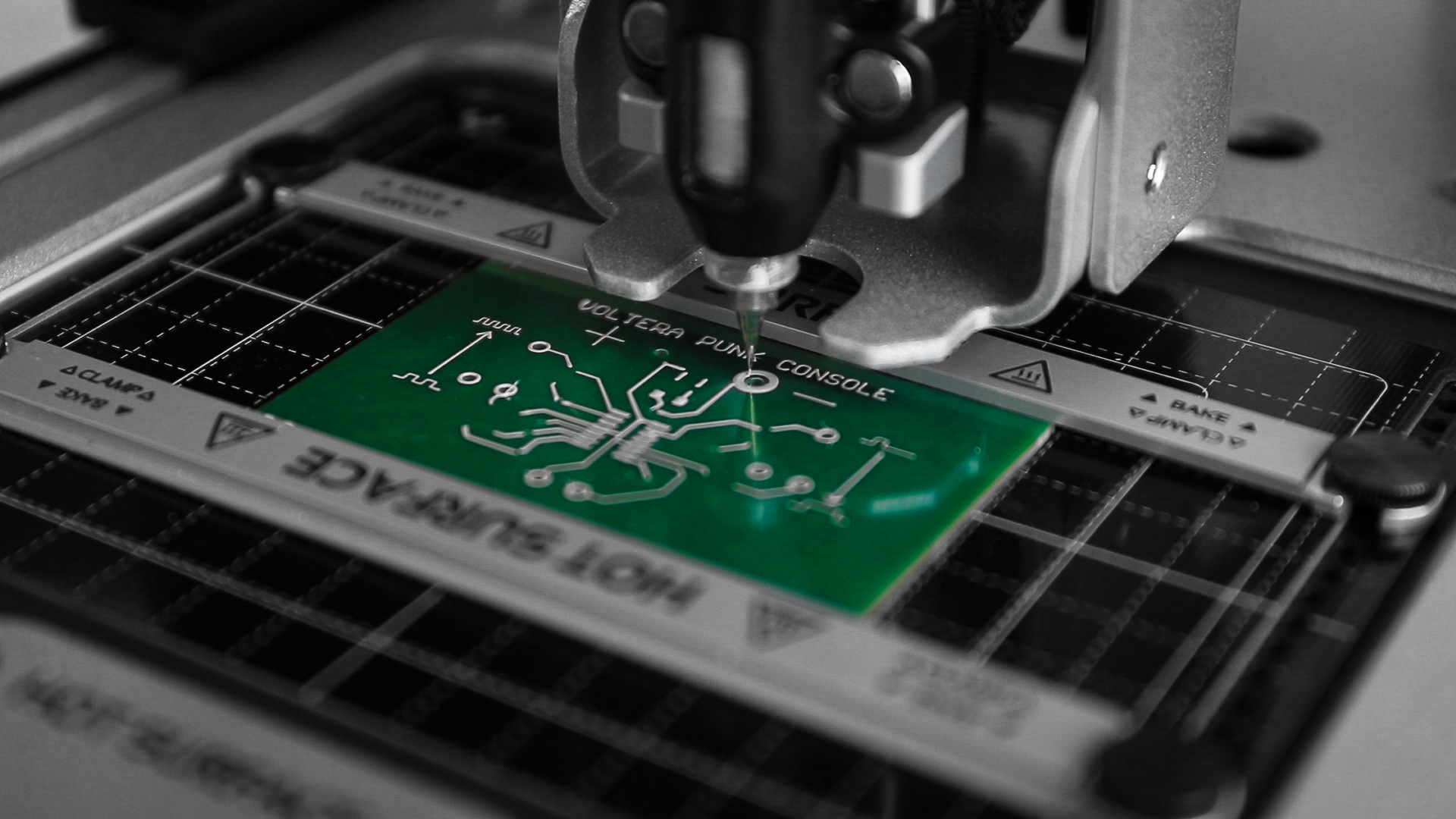

• Direct ink write (DIW)

Pressure control

• Open loop

Minimum trace width

• 0.2 mm

Print area

• 128 mm x 116 mm
• 5” x 4.5”

XYZ resolution**

• 10 µm x 10 µm x 1 µm

Module slots

• 1

Compatible modules

• V-One dispenser
• V-One probe

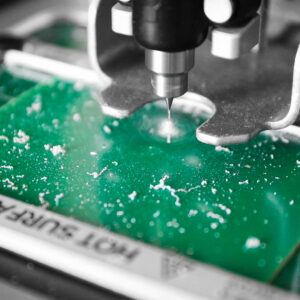

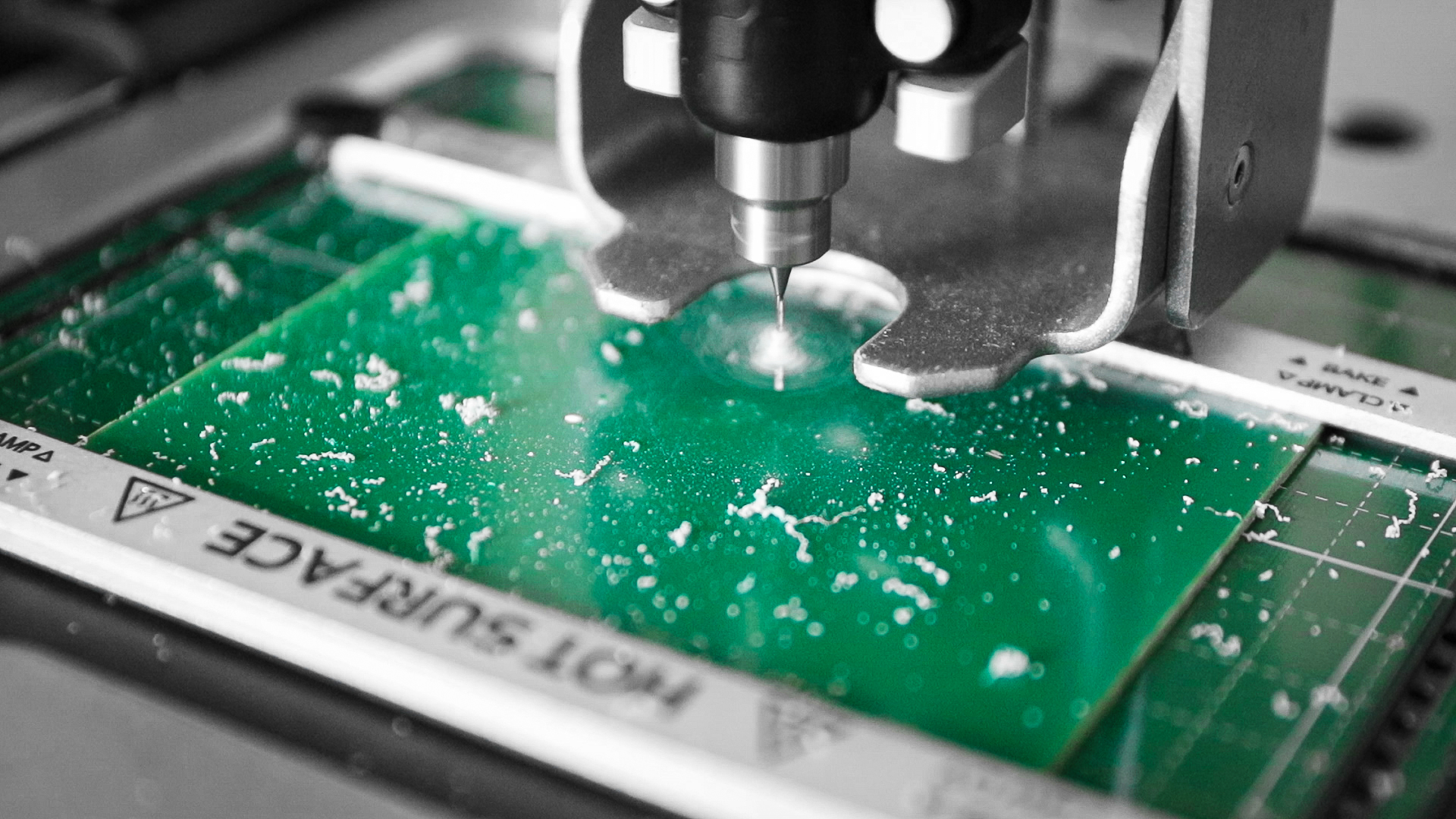

• V-One drill

Substrate fixturing

• Clamping

Substrate thickness

• Up to 3 mm

Substrates

• Rigid

Alignment and registration

• Manual

Syringe capacity

• Up to 2 mL

Dispensable materials

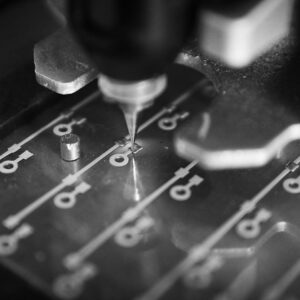

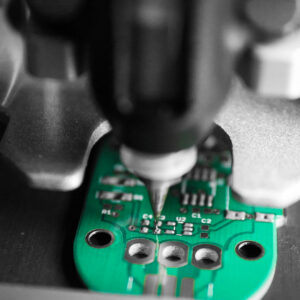

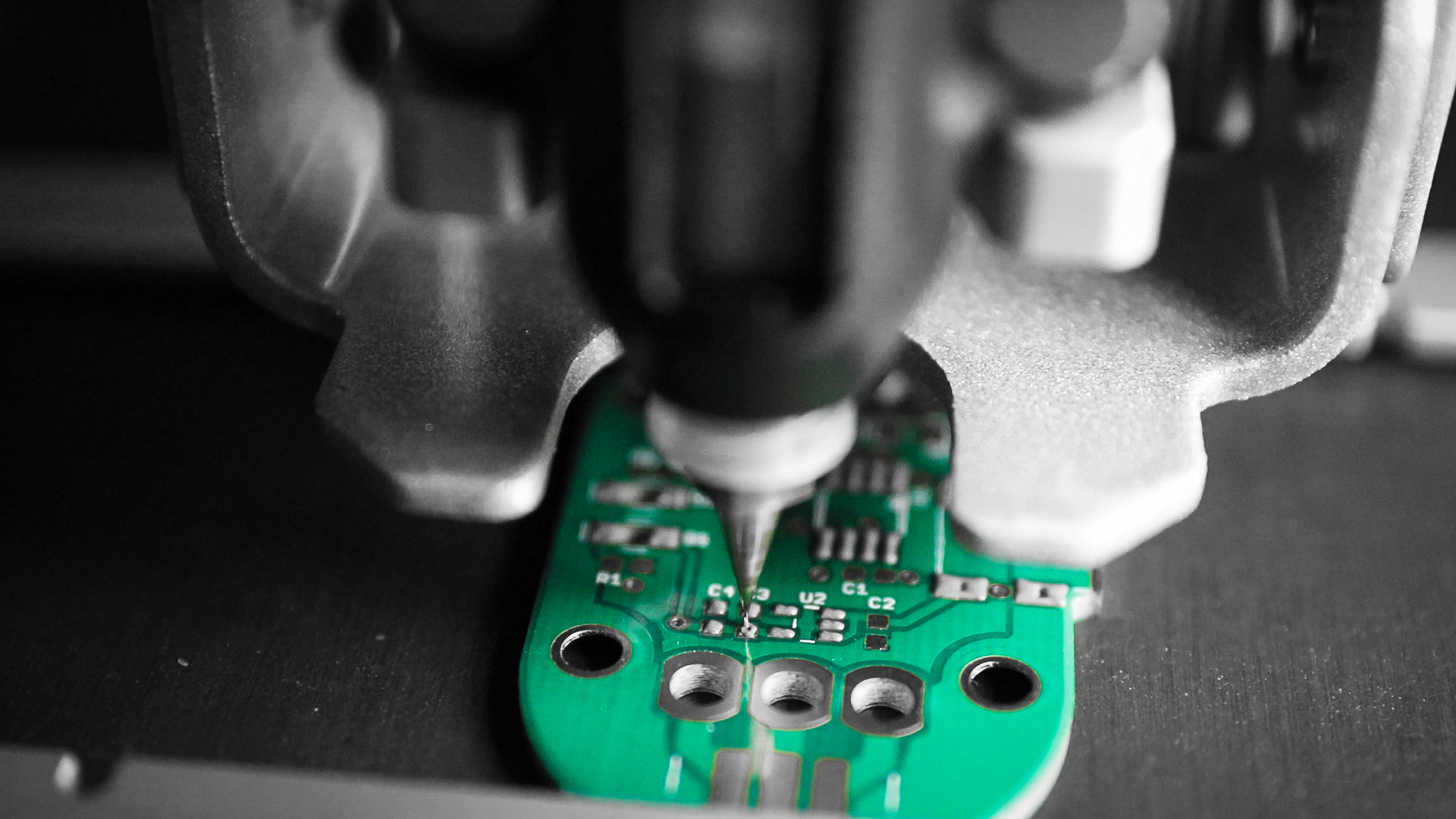

• Solder paste
• Conductor 3

Additional features

• Integrated hot plate for cure and reflow soldering
